RFE 200 C | H. Östberg

RFE 200 C Updated: 2023-08-21

7710017 -

RFE 200 CKR aut tp swing-out

7710016 -

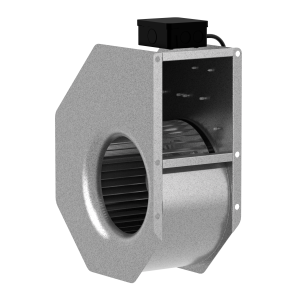

RFE 200 CKU aut tp swing-out

Single-phase single inlet radial fan.
Compact with high capacity and efficiency.
Low sound levels.
Impeller with forward curved blades.
The external rotor motor has maintenance-free sealed ball-bearings.
The motor is situated in the airstream to get ultimate cooling.
Integrated motor protection.
Junction box has enclosure class IP 54.
For speed control a transformer or electronic speed controller can be connected.
Fan housing is manufactured from galvanized sheet steel.
Ideal for use in heat exchangers, dehumidifiers and air cleaners.
Explanations:
KR = With junction box, with connection pipes.
KU = With junction box, without connection pipes.
All diagrams shown with duct connected fan.

Generating diagrams...

Variable control

User input

Air Flow (l/s)

External static pressure (Pa)

Data

Air Flow (l/s)

External static pressure (Pa)

Power (W)

Speed (r.p.m.)

Current (A)

Voltage (V)

230

Efficiency (%)

SFPv (kW/m3/s)

Change the "User input" by dragging the point, or by entering new values.

Generating diagrams...

	RFE 200 CKR aut tp swing-out 7710017		RFE 200 CKU aut tp swing-out 7710016
Parameter	Value	Unit	Value	Unit
Voltage	230	V	230	V
Phase	1	~	1	~
Frequency	50	Hz	50	Hz
Power	190	W	190	W
Current	0.83	A	0.83	A
Speed	1200	r.p.m.	1200	r.p.m.
Max. temperature of transported air	50	°C	50	°C
Max. temperature of transported air when speed controlled	50	°C	50	°C
Sound pressure level at 3 m	57	dB(A)	57	dB(A)
Weight	6	kg	6	kg
Enclosure class	44	IP	44	IP
Insulation class, motor	F		F
Capacitor	6	µF	6	µF
Max. flow @ 0Pa	267	l/s	267	l/s
Max. pressure	253	Pa	253	Pa
Voltage range	220-240	V	220-240	V
