Svenska TKH 760 B3 Updated: 2023-03-03
| 7350056 - | TKH 760 B3 Galv. | 7350008 - | TKH 760 B3 Black |
- Roof fan with square connection.
- Horizontal outlet.
- High performance and proven reliability.
- Operational in both 50 and 60 Hz.
- Impeller with backward curved blades.
- The external rotor motor has maintenance-free sealed ball-bearings.
- Integrated motor protection.
- Junction box has enclosure class IP 54.
- For speed control a transformer can be connected.
- Fan housing is manufactured from galvanized sheet steel and is polyester plastic coated. Can be ordered uncoated or with coating that complies with the Environmental class M3/Corrosion class C4.
- Swing-up design to simplify maintenance and cleaning of the impeller.
- The easiest way to mount the roof fan is with a roof curb TFU.

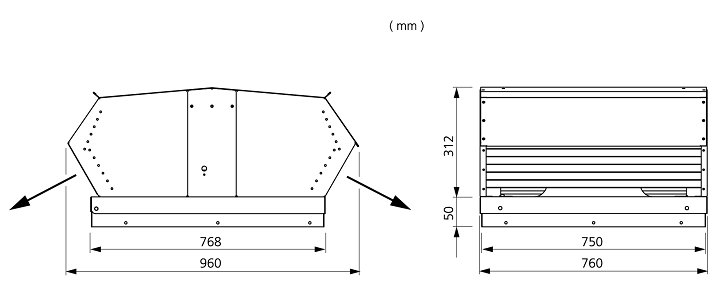

Generating diagrams...
Generating diagrams...
|
TKH 760 B3 Galv. 7350056 |
TKH 760 B3 Black 7350008 |
|||
|---|---|---|---|---|
| Parameter | Value | Unit | Value | Unit |
| Voltage | 400 | V | 400 | V |
| Phase | 3 | ~ | 3 | ~ |
| Frequency | 50 | Hz | 50 | Hz |
| Power | 810 | W | 810 | W |
| Current | 1.5 | A | 1.5 | A |
| Speed | 1350 | r.p.m. | 1350 | r.p.m. |
| Max. temperature of transported air | 70 | °C | 70 | °C |
| Max. temperature of transported air when speed controlled | 70 | °C | 70 | °C |
| Weight | 48.0 | kg | 48.0 | kg |
| Enclosure class | 44 | IP | 44 | IP |
| Insulation class, motor | F | F | ||
| Max. flow @ 0Pa | 1740 | l/s | 1740 | l/s |
| Max. pressure | 578 | Pa | 578 | Pa |
| Voltage range | 380-415 | V | 380-415 | V |
