RFE 140 L | H. Östberg

RFE 140 L Updated: 2023-08-21

7700003 -

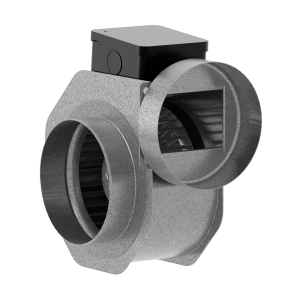

RFE 140 LKR man tp

7700002 -

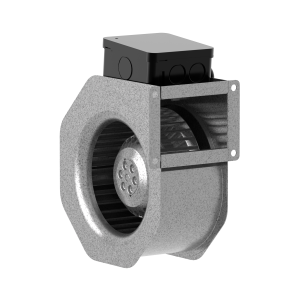

RFE 140 LKU man tp

7700001 -

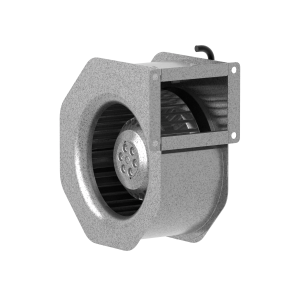

RFE 140 LUU man tp + E450

Single-phase single inlet radial fan.
Compact with high capacity and efficiency.
Low sound levels.
Impeller with forward curved blades.
The external rotor motor has maintenance-free sealed ball-bearings.
The motor is situated in the airstream to get ultimate cooling.
Integrated motor protection.
Junction box has enclosure class IP 54.
For speed control a transformer or electronic speed controller can be connected.
Fan housing is manufactured from galvanized sheet steel.
Ideal for use in heat exchangers, dehumidifiers and air cleaners.
Explanations:
KR = With junction box, with connection pipes.
KU = With junction box, without connection pipes.
UU = Without junction box, without connection pipes.
All diagrams shown with duct connected fan.

Generating diagrams...

Variable control

User input

Air Flow (l/s)

External static pressure (Pa)

Data

Air Flow (l/s)

External static pressure (Pa)

Power (W)

Speed (r.p.m.)

Current (A)

Voltage (V)

230

Efficiency (%)

SFPv (kW/m3/s)

Change the "User input" by dragging the point, or by entering new values.

Generating diagrams...

	RFE 140 LKR man tp 7700003		RFE 140 LKU man tp 7700002		RFE 140 LUU man tp + E450 7700001
Parameter	Value	Unit	Value	Unit	Value	Unit
Voltage	230	V	230	V	230	V
Phase	1	~	1	~	1	~
Frequency	50	Hz	50	Hz	50	Hz
Power	62	W	62	W	62	W
Current	0.27	A	0.27	A	0.27	A
Speed	1240	r.p.m.	1240	r.p.m.	1240	r.p.m.
Max. temperature of transported air	80	°C	80	°C	80	°C
Max. temperature of transported air when speed controlled	80	°C	80	°C	80	°C
Sound pressure level at 3 m	53	dB(A)	53	dB(A)	53	dB(A)
Weight	2.7	kg	2.7	kg	2.7	kg
Enclosure class	44	IP	44	IP	44	IP
Insulation class, motor	F		F		F
Capacitor	4	µF	4	µF	4	µF
Max. flow @ 0Pa	52	l/s	52	l/s	52	l/s
Max. pressure	293	Pa	293	Pa	293	Pa
Voltage range	220-240	V	220-240	V	220-240	V
