RFTX 160 A Updated: 2023-03-06

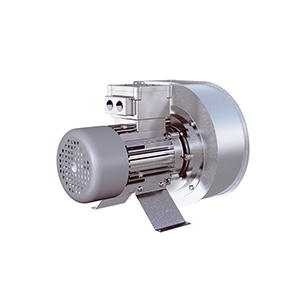

7730004 - RFTX 160 A

Product marked with this symbol has an AC motor. An induction motor is an electric motor were the rotor speed is asynchronous with the input voltage frequency. This product is compliant with directive 2014/34/EU and approved for use in explosive atmospheres.

  • 3- phase radial fan with circular inlet connection.
  • The RFTX is a safe choice for numerous applications in hazardous locations.
  • The fan is intended for use where an explosive environment with gas can sometimes occur.
  • The fan can only be used in zone 1 and 2.
  • The ATEX fan is not subject to the ErP directive.
  • Impeller with forward curved blades.
  • The external rotor motor is separated from the air stream and has maintenance-free sealed ballbearings.
  • RFTX cannot be speed controlled.
  • Integrated junction box.
  • External motor protection should be connected to the fan according to EN 60079-14:2014.
  • Fan housing is manufactured from galvanized sheet steel with a nonsparking inlet cone made from copper.
  • The fan is certified according to directive 2014/34/EC.
  • Compliance with the standards EN 14986:2017 and EN ISO IEC 80079-36:2016.
  • The fan is intended to be installed indoors in a duct system.
  • Ex-marking II2G Ex h IIB + H2 T3 Gb.
