RFE 140 D | H. Östberg

RFE 140 D Updated: 2023-09-04

7720256 -

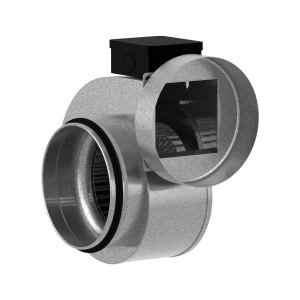

RFE 140 DKR aut tp

7720254 -

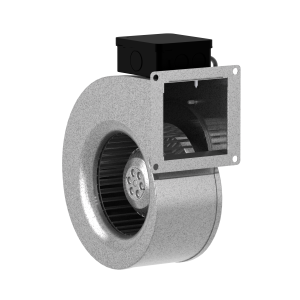

RFE 140 DKU aut tp

7720253 -

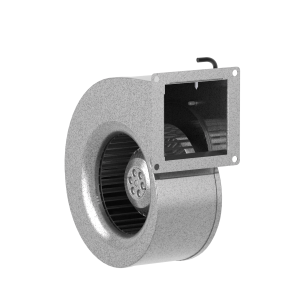

RFE 140 DUU aut tp

Single-phase single inlet radial fan.
Compact with high capacity and efficiency.
Low sound levels.
Impeller with forward curved blades.
The external rotor motor has maintenance-free sealed ball-bearings.
The motor is situated in the airstream to get ultimate cooling.
Integrated motor protection.
Junction box has enclosure class IP 54.
For speed control a transformer or electronic speed controller can be connected.
Fan housing is manufactured from galvanized sheet steel.
Ideal for use in heat exchangers, dehumidifiers and air cleaners.
Explanations:
KR = With junction box, with connection pipes.
KU = With junction box, without connection pipes.
UU = Without junction box, without connection pipes.
All diagrams shown with duct connected fan.

Generating diagrams...

Variable control

User input

Air Flow (l/s)

External static pressure (Pa)

Data

Air Flow (l/s)

External static pressure (Pa)

Power (W)

Speed (r.p.m.)

Current (A)

Voltage (V)

230

Efficiency (%)

SFPv (kW/m3/s)

Change the "User input" by dragging the point, or by entering new values.

Generating diagrams...

	RFE 140 DKR aut tp 7720256		RFE 140 DKU aut tp 7720254		RFE 140 DUU aut tp 7720253
Parameter	Value	Unit	Value	Unit	Value	Unit
Voltage	230	V	230	V	230	V
Phase	1	~	1	~	1	~
Frequency	50	Hz	50	Hz	50	Hz
Power	198	W	198	W	198	W
Current	0.86	A	0.86	A	0.86	A
Speed	1800	r.p.m.	1800	r.p.m.	1800	r.p.m.
Max. temperature of transported air	60	°C	60	°C	60	°C
Sound pressure level at 3 m	45	dB(A)	45	dB(A)	45	dB(A)
Weight	3.4	kg	3.4	kg	3.4	kg
Enclosure class	44	IP	44	IP	44	IP
Insulation class, motor	F		F		F
Capacitor	4	µF	4	µF	4	µF
Max. flow @ 0Pa	161	l/s	161	l/s	161	l/s
Max. pressure	402	Pa	402	Pa	402	Pa
Voltage range	220-240	V	220-240	V	220-240	V
