RFT 250 B Updated: 2023-08-21

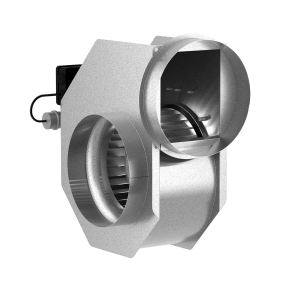

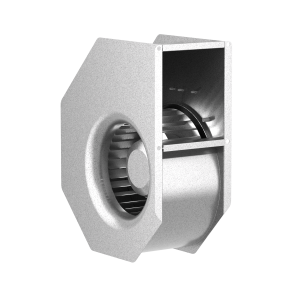

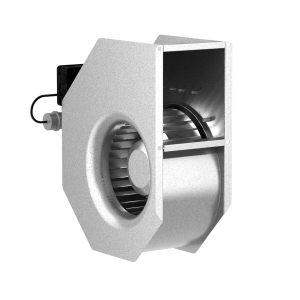

7720100 - RFT 250 BKR outdrawn tp 7720099 - RFT 250 BKU outdrawn tp 7720092 - RFT 250 BUU outdrawn tp

Product marked with this symbol has an AC motor. An induction motor is an electric motor were the rotor speed is asynchronous with the input voltage frequency. This product is compliant with the Lot 11 directive (327/2011) and approved for use in the EU and EFTA.

  • 3-phase single inlet radial fan.
  • Compact with high capacity and efficiency.
  • Low sound levels.
  • Impeller with forward curved blades.
  • The external rotor motor has maintenance-free sealed ball-bearings.
  • The motor is situated in the airstream to get ultimate cooling.
  • Integrated motor protection.
  • Junction box has enclosure class IP 54.
  • For speed control a transformer or electronic speed controller can be connected.
  • Fan housing is manufactured from galvanized sheet steel.
  • Ideal for use in heat exchangers, dehumidifiers and air cleaners.
  • Explanations:
    KR = With junction box, with connection pipes.
    KU = With junction box, without connection pipes.
    UU = Without junction box, without connection pipes.
  • All diagrams shown with duct connected fan.
